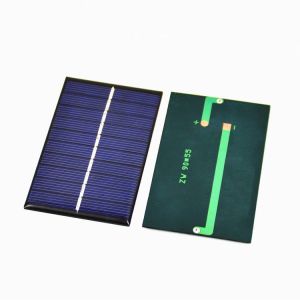

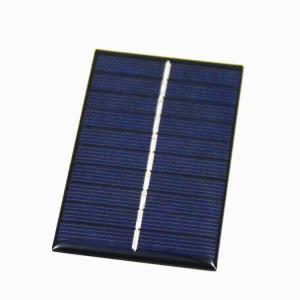

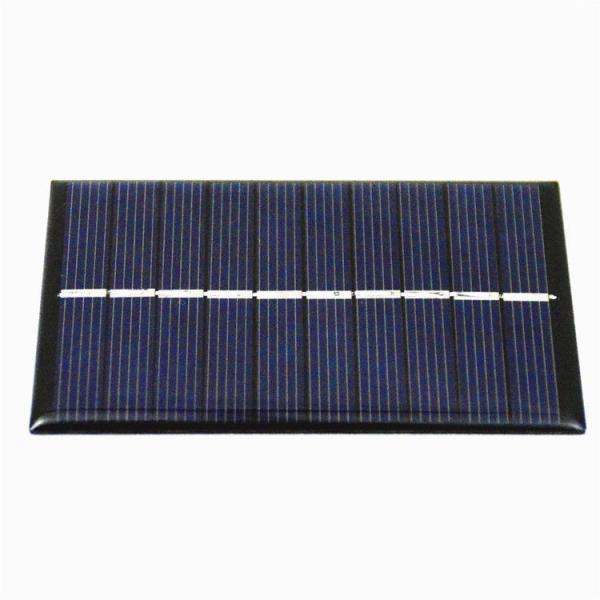

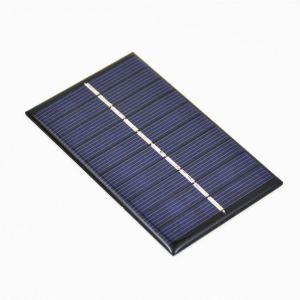

    Lightweight 6V 0.8W Polycrystalline Silicon Solar PV Modules

    Ask Lasest Price
    Brand Name : OEM
    Model Number :
    Supply Ability : 10000PCS
    Price : Negotiation
    Certification : ISO9001, CE, SGS
    Payment Terms : T/T, L/C, T/T, Western Union
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Lightweight 6V 0.8W Polycrystalline Silicon Solar PV Modules

    Lightweight 6V 0.8W Polycrystalline Silicon Solar PV Modules


    The high efficiency solar PV module adopts the worlds highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.


    Module characteristic


    1. High conversion rate and efficient output Poly crystalline Silicon.

    2. Mini Solar Panels with excellent weak light effect to charge solar kits system.

    3. High quality and high transmittance of toughened glass special for mini solar panels.

    4. The unique process makes the components look strong and anti-snow, and easy to install.

    5. Special techniques to avoid Mini Solar Panels the freezing and deformation of water in the frame Suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.

    6.Mini Solar Panels suitable for all kinds of small power appliances, emergency lights, advertising lights, traffic lights, household lights, electric fans, such as solar water pumps, solar street lamps, small solar systems.

    7. Quality solar cells with high solar energy conversion up to 19.5%.

    8. Mono-crystalline or poly-crystalline silicon solar cells are for options.

    9. Transparent low-iron tempered glass and anodized aluminum frame to ensure modules working in extreme outdoor environment.

    10. Lifespan up to 25 years for solar panel photo-voltaic.


    ModelZW-9055-5V
    Size90X55X2.5mm
    MaterialPoly-silicon drop gel can be customized
    Battery10
    Peak power0.6W
    Max voltage5.0V
    Max current0.15A
    Open voltage5.5V
    Short current0.30A
    Weight15.2G
    Raw Material

    Poly-crystalline Silicon

    Epoxy Adhesive

    Printed Circuit Board (PCB)

    ColorCustomize
    Warranty PeriodReplacement for manufacturing defects within 5 years
    Optimized cell efficiency17%-19%
    Operating temperature-40°C to +85°C
    NOCT48°C+/-2°C
    Guaranteed15 year:90% of its nominal power rating
    Power Output25 year:80% of its nominal power rating
    Warranty PeriodReplacement for manufacturing defects within 5 years
    CertificatesCE, RoHS, FCC, TUV
    CellsMono crystalline silicon Photo-voltaic cell
    Current temperature coefficient%/K0.06+/-0.01
    Voltage temperature coefficientmV/K-(78+/-10)
    Power temperature coefficient%/K-(0.5+/-0.05)
